The Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p at 60FPS. The HD picture quality takes you to experience the fun of flying a drone. Featuring a 4-antenna design. 2 directional antennas and the maximum transmission distance is 4km. Walksnail VRX is only 83g and comes with 114x55x22mm; a size easy to carry.

Features

• Lightweight Design – 83g
• Max transmission distance of more than 4km
• Supports 1080P 60FPS or 720P 100FPS
• Supports Betaflight Canvas Mode
• Compatible with Analog Goggles
• HDMI Out

• HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system

  Canvas Mode
  Supports Betaflight, INAV, and KISS with full OSD.
  You can easily adjust the parameters you want by remote control.

  Specification

  Camera:

  Model Avatar nano Avatar camera
  Image Sensor: 1 2.7”1nch
  Resolution: 1080P 60fps,720P 120fps,720P 60fps
  Ratio: 16 9 4 3
  Lens: 2.1mm
  FOV: 170°
  Aperture: F2.0
  Shutter: Rolling shutter
  Min.Illumination: 0.001Lux
  Weight: 3.5g 6g
  Dimensions: 14x14x17mm 19x19x22mm
  Coaxial Cable: 90mm 140mm

  VTX:

  Model Avatar module
  Communication Frequency: 5.725-5.850GHz
  Transmitter Power: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
  MIC: <25dBm
  I O Interface: JST1.0x6 (Power in) JST1.0x4(USB)
  Mounting Holes: 25.5×25.5mm
  Dimensions 33x33x9.5mm
  Storage: 8GB
  Recording: 1080p 720p
  Weight: 16g
  Operating Temperature: -20-40℃
  Channels: 8
  Wide Power Input: 6V-25.2V
  Supported FC System Betaflight
  OSD Canvas mode
  Latency Average Delay: 22ms
  Antenna: 2x (IPEX)
  Goggles Antenna
  Model: Red bird
  Polarization: LHCP
  Bandwidth: 5.6GHz-6.0GHZ
  Average Gain: 1.9dBi
  Radiation Efficiency: ≥97%
  VSWR: ≤1.3
  Cross-Polar Rejection: -15to-30dB
  Connector: RP-SMA
  Dimension: H24.8mm x R15.3mm
  Weight: 4.2g

  Avatar HD VRX

  Model Avatar HD VRX
  CommunicationFrequency: 5.725-5.850GHz
  TransmitterPower: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
  I O Interface: HDMI, micro SD card slot, DC5.5×2.1mm
  HDMI output: 1080p 60fps, 720p 100fps, 720p 60fps
  Power Input: 7-21V(2S-5S)
  SD Card Support:256G
  System: Avatar HD system

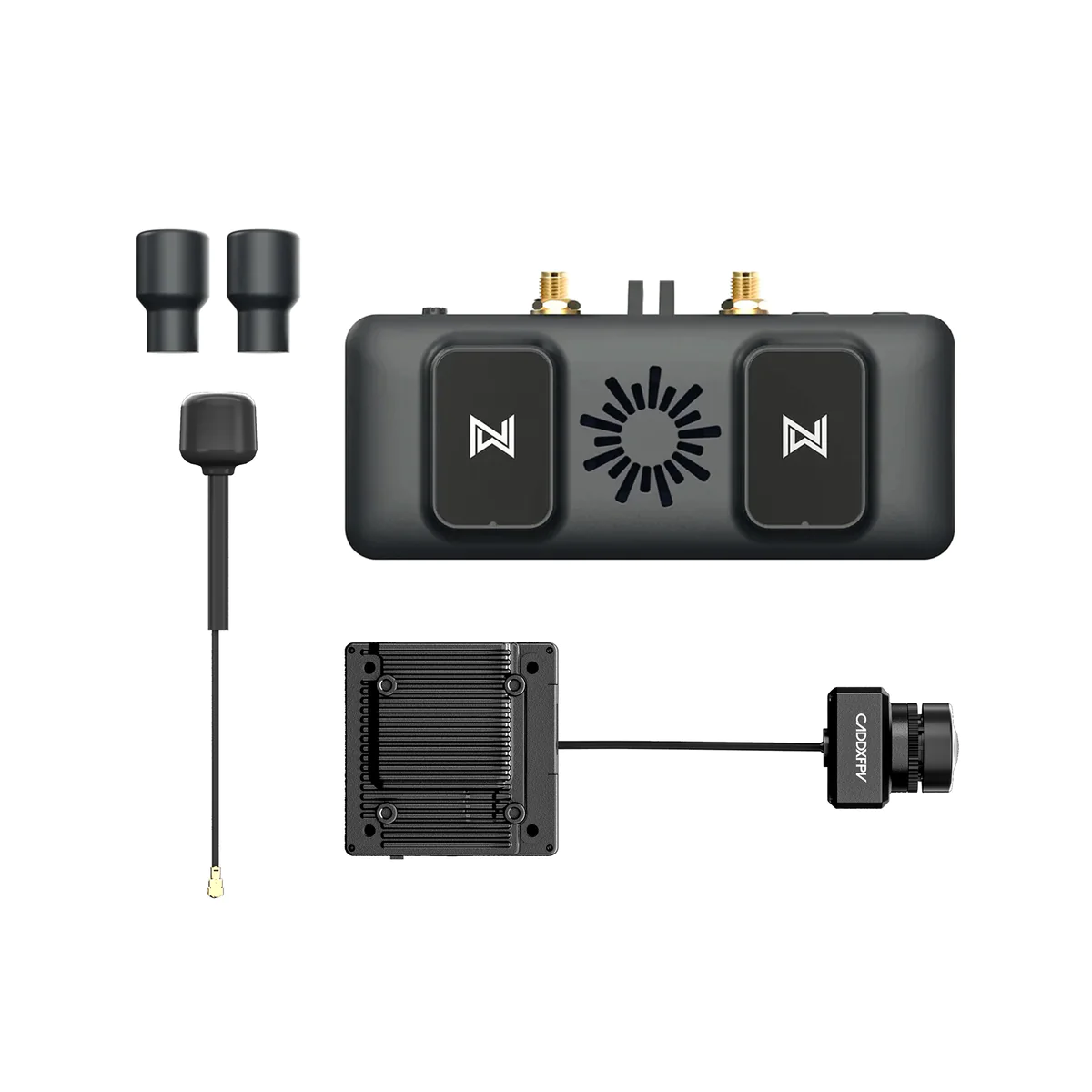

  Includes:

  Avatar VRX:
  RedBirdAntenna x2
  HDMI cable x1
  2-in-1 DCPowerCable x1


  Avatar HD KIT:
  4 Pin USB Cable x1
  6 Pin Power Cable x1
  M2x3 4 5mm Screws x4
  M1.2×1.5mm Screws x2


  Avatar HD Nano KIT:
  4 Pin USB Cable x1
  6 Pin Power Cable x1
  M2x3 4 5mm Screws x2
  M1.2×1.5mm Screws x2
  14-19mm Bracket x1


  Avatar Mini 1S KIT:
  4 Pin USB Cable x1
  6 Pin Power Cable x1
  M2x3 4mm Screws x2
  M2x16mm Screws x4
  M2 Screw nut x4
  2.1×3.4x1mm Gasket x5

  Additional information

  Bundle Option	Avatar HD 1S Lite Kit, Avatar HD 1S Kit, Avatar HD Nano Kit, Avatar HD Micro Kit, Avatar HD VRX ONLY, Avatar HD V2 Micro Kit, Avatar HD V2 Pro Kit, Avatar HD Nano V3 Kit
